Pixel Pirate #DevToolTips

Key Concepts

• Focus emulation
• Autofill panel
• Network overrides
• AI assistance for sources
• Ephemeral UI
• Form debugging
• Frontend/backend development gaps
• Minified JavaScript

Emulating Focus Styles

• Problem: Ephemeral UI elements (like dropdowns) disappear when focus is lost, making debugging difficult.
• Example: Selecting a ship on the demo site requires remembering a registration number from a dropdown that closes upon focusing the input field.
• Solution: Use focus emulation in the Elements panel to force the document to maintain focus, keeping the dropdown open.
• Process:
  1. Verify the issue using document.hasfocus in the Console panel to confirm that the dropdown options are only rendered when the document has focus.
  2. In the Elements panel, enable "emulate focus page" in the hover menu.
  3. Copy the registration number and paste it into the input field.
• Benefit: Allows inspection and interaction with UI elements that disappear on focus loss.

Form Debugging with Autofill Panel

• Problem: Testing forms for international addresses and diverse data inputs can be tedious and require sourcing test data.
• Example: The demo site requires contact information for someone in Mexico.

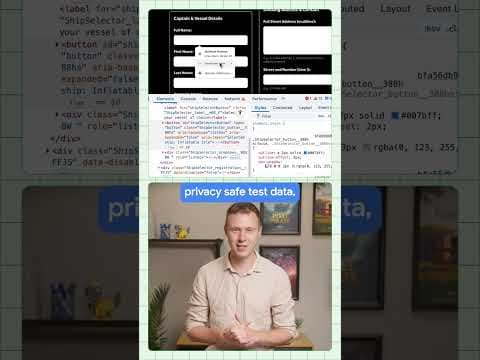

• Solution: Use the Autofill panel in DevTools to populate forms with privacy-safe test data for various regions.
• Process:
  1. Open the Autofill panel (More Tools > Autofill).
  2. Toggle "show test addresses."
  3. Focus on any input field in the form.
  4. Select a region (e.g., Mexico) from the "developer tools" autofill option.
  5. The form and the Autofill panel will be populated with test data.
• Benefit: Simplifies form testing with realistic data, ensuring compatibility with different address formats and input requirements.

Network Overrides for Backend Issues

• Problem: Gaps between frontend and backend development can lead to missing headers or incorrect API responses.
• Example: Submitting the permit form results in a "missing header" error because the backend hasn't added the harbor chief's signature.
• Solution: Use network overrides to modify the API response and add the missing header.
• Process:
  1. Go to the Network panel and find the API request (e.g., API/filepermit).
  2. Right-click on the request and select "Override Headers."
  3. Add the required header (e.g., harborChiefSignature: [signature]) in the right-hand panel.
  4. Resubmit the form.
• Benefit: Allows frontend developers to continue working without waiting for backend fixes, enabling faster development cycles.

AI Assistance for Sources

• Problem: Understanding minified JavaScript code can be difficult and time-consuming.
• Example: The harbor gate is controlled by a minified script (gate.min.js) with obfuscated code.
• Solution: Use AI assistance for sources to explain the code and extract relevant information.
• Process:
  1. Open the command palette (Command P) and type the file name (gate.min.js) to jump to the file in the Sources panel.
  2. Right-click on the file and select "Ask AI" or press the floating AI button.
  3. Use a preselected prompt (e.g., "What does this script do?") or type a custom prompt.
  4. The AI will explain the code and provide relevant information, such as a code snippet to open the gate.
  5. Paste the code snippet into the Console panel.
• Benefit: Speeds up code comprehension and debugging, especially for unfamiliar or minified codebases.

Conclusion

The demo showcased several powerful DevTools features that can significantly improve the debugging and development workflow. Focus emulation helps with ephemeral UI, the Autofill panel simplifies form testing, network overrides address backend issues, and AI assistance aids in understanding complex code. By leveraging these tools, developers can overcome common challenges and build better web applications more efficiently. The final riddle encourages viewers to explore the Performance panel and share their findings, promoting active learning and community engagement.
