How to 3D print your own GitHub models

Key Concepts

• 3D Printing: Additive manufacturing process building three-dimensional objects from a digital design.
• Filament: Thermoplastic material used as feedstock in Fused Deposition Modeling (FDM) 3D printing.
• Supports: Temporary structures printed to support overhanging features during the 3D printing process.
• GitHub Repository: A storage location for code and other files, used for version control and collaboration.
• Fused Deposition Modeling (FDM): A common 3D printing technology where filament is heated and extruded layer by layer.
• Overhangs: Portions of a 3D model that extend horizontally without underlying support.

GitHub Universe 3D Prints: A Detailed Overview

This discussion, taking place at the GitHub Universe maker space, centers around GitHub’s creation and public release of 3D printable models based on their website and branding elements. The core idea is to allow individuals to recreate GitHub-branded items using readily available 3D printing technology.

Model Design and Printing Process

GitHub converted their existing website and branding models into a format suitable for 3D printing. The models are designed with specific features that leverage the capabilities of FDM 3D printers. A key element demonstrated is the inclusion of embedded components during the printing process. Specifically, the process involves pausing the print at a designated layer to manually insert a magnet and a washer for weight into a pre-defined void within the model. The print then resumes, permanently encapsulating these items within the finished object. This demonstrates a practical application of pausing and resuming prints for functional integration.

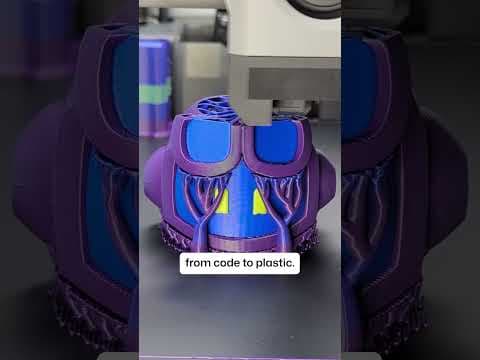

The discussion highlights the necessity of supports during the printing process. These temporary structures are printed alongside the main model to provide a base for overhangs – sections of the design that would otherwise lack support during layer-by-layer construction. The presenter clarifies that these supports are not part of the final product and are removed post-printing. The example shown illustrates a stage where earlier supports are visible, and the printer is currently building into empty space, relying on the supports for filament adhesion.

Accessibility and Resources

GitHub has made the 3D models publicly available through a dedicated repository. Individuals interested in printing these models can access them via gh.io/ctopprints or by scanning a QR code – notably, the QR code itself was also 3D printed, showcasing the technology’s versatility. The presenter explicitly states that users are not limited to single-color prints and are encouraged to paint or otherwise customize the finished objects.

Technical Considerations

The conversation implicitly touches upon the principles of FDM 3D printing. The use of filament as the printing material is assumed. The discussion also highlights the importance of understanding layer adhesion and the need for support structures when designing for 3D printing. The embedded magnet and washer demonstrate a method for adding weight and functionality to a 3D printed object during the build process, requiring precise timing and model design.

Synthesis

GitHub’s initiative provides a tangible and engaging way for the community to interact with the brand. By releasing the 3D models, they are fostering creativity and allowing users to personalize their GitHub experience. The demonstration of embedding components during the print process showcases a more advanced application of 3D printing, going beyond simple replication of designs. The accessibility of the models via a public repository and QR code further encourages participation and experimentation.
